Stamp Type 2T2R

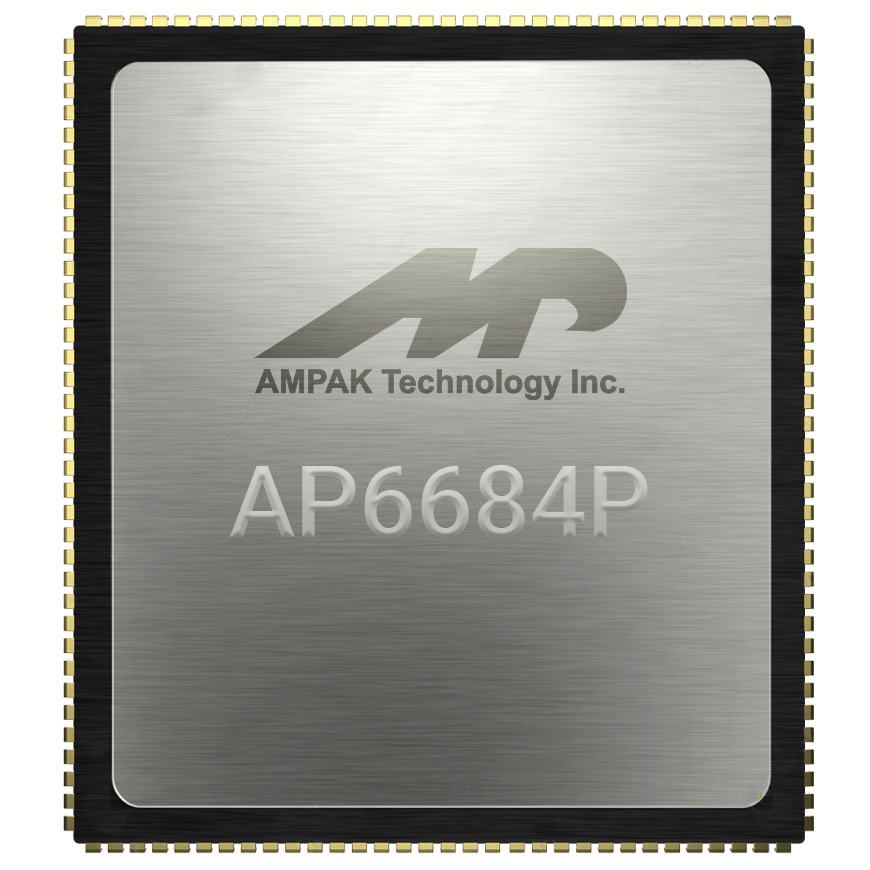

AP6684P

2T2R 802.11 a/b/g/n/ac/ax /be Wi-Fi 7® + Bluetooth® 6.0

Specification

Form factor Stamp type
IC Synaptics SYN4384
Dimension 13x15mm
Band 2.4GHz/5GHz/6GHz
Certification  FCC/CE pre-scan
Wi-Fi spec Support Wi-Fi®7
RSDB 1x1 +1x1
Dual-stream spatial multiplexing up to 1200 Mbps data rate
Wi-Fi interface PCIE
Bluetooth Spec Bluetooth® 6.0
Thread and 802.15.4 support
Bluetooth interface UART/PCM
Operating temperature -30 °C to 85 °C
Driver support Linux, Android, RTOS
DataSheet
EVB

Product Overview

The AMPAK Technology® AP6684P is a Wi-Fi 7(2.4/5/6GHz) and Bluetooth functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors' 802.11a/b/g/n/ac/ax/be 2x2 Access Points with MIMO standard and can accomplish up to
speed of 1200Mbps with dual stream in 802.11be to connect the wireless LAN. Furthermore AP6684P included PCIE interface for Wi-Fi, UART/ PCM interface for Bluetooth. In addition, this compact module is a total solution for a combination of Wi-Fi + Bluetooth technologies. The module is specifically developed for tablet, OTT box and portable devices.


Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
