Stamp Type 2T2R

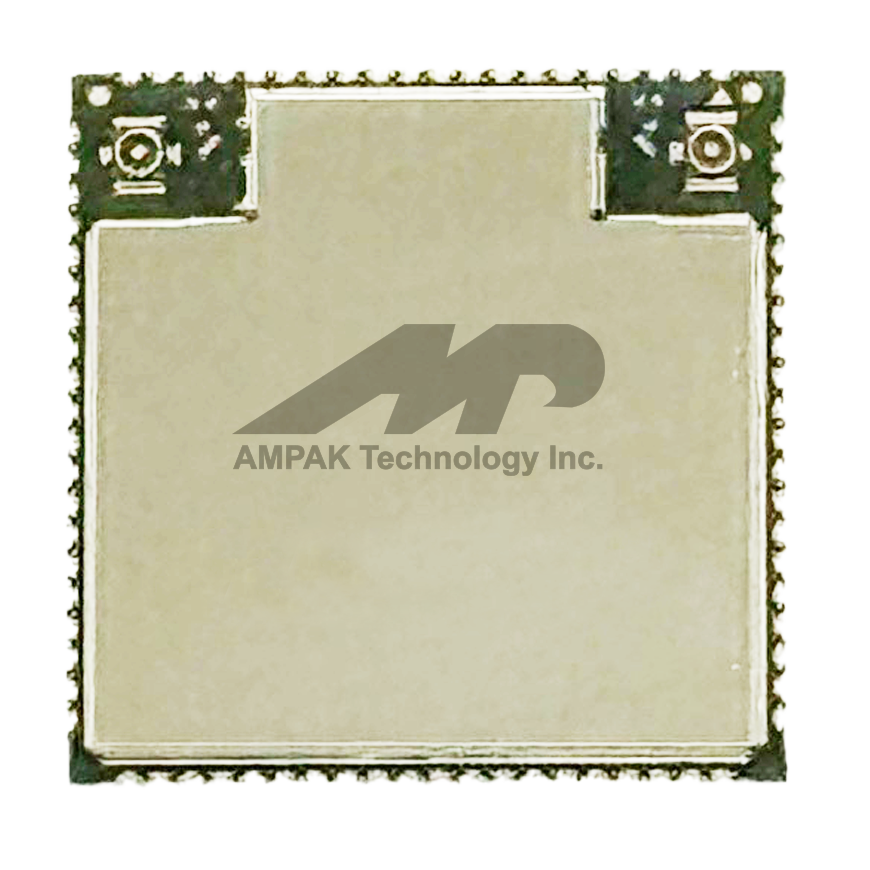

AP6676PHH
2T2R 802.11 ax/ac/a/b/g/n Wi-Fi 6 Module
Specification
Product Overview
The AMPAK Technology® AP6676PHH is a high-power Wi-Fi module featuring seamless roaming capabilities and advanced security. It supports interoperability with various vendors’ 802.11a/b/g/n/ac/ax 2×2 access points using MIMO technology, delivering data rates up to 1200 Mbps with dual-stream 802.11ax for wireless LAN connectivity. The AP6676PHH integrates a 5GHz external PA/LNA/RF switch FEM, boosting transmit power up to +25 dBm. An external 5 V power supply is required to drive the FEM . In addition, the module provides a PCIe interface for Wi-Fi connectivity. This compact module is designed as a complete Wi-Fi solution and is well-suited for applications such as tablets, OTT boxes, and other portable devices.
Capacity
Speed
Connection
