M.2 2230 Card

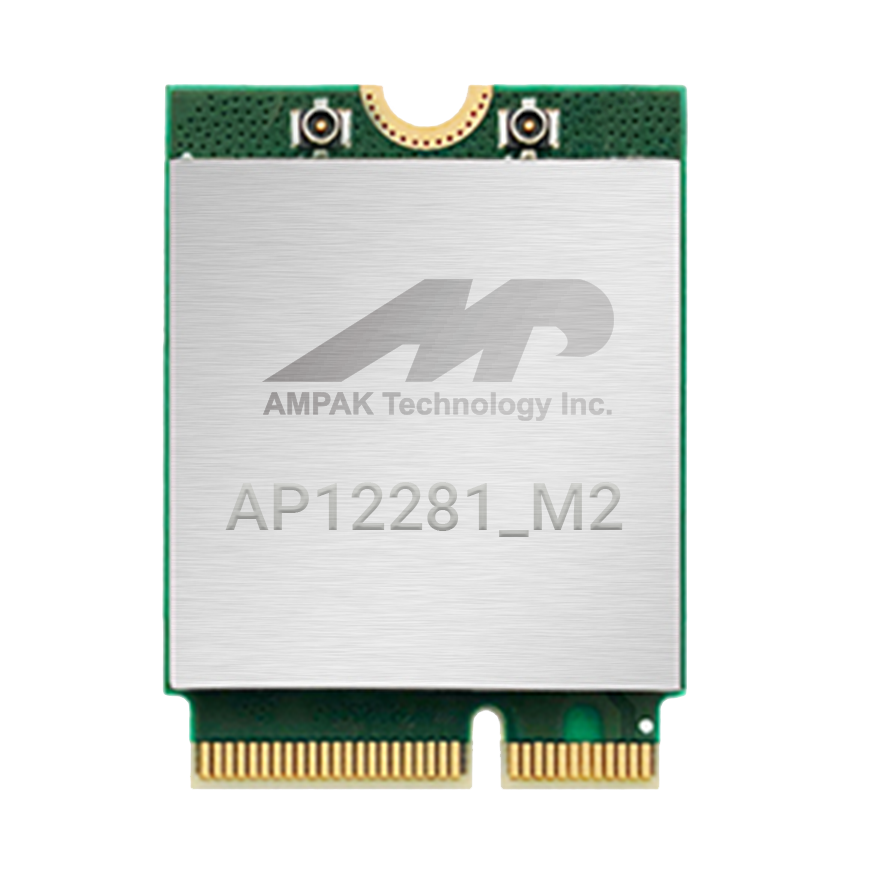

AP12281_M2

1T1R 802.11 a/b/g/n/ac/ax Wi-Fi 6E + BT 5.3+ IEEE 802.15.4/Thread Module 2230 M.2 card (KEY E)

Specification

Form factor M.2 2230
IC Synaptics SYN4381
Dimension 22x30mm
Band 2.4GHz/5GHz/6GHz
Certification FCC/CE pre-scan and BQB
WiFi spec 802.11ax/ac/a/b/g/n compliant
Single-stream spatial multiplexing up to 600 Mbps data rate.
WiFi interface SDIO
Bluetooth spec Bluetooth® 6.0
Bluetooth interface UART / PCM
802.15.4(Matter over Thread) Support
Operating temperature -30 °C to 85 °C
Driver support Linux, Android
Datasheet

Product Overview

he AMPAK Technology® AP12281_M2 is a fully Wi-Fi 6E, Bluetooth and IEEE 802.15.4/Thread functionalities module with seamless roaming capabilities and advance security, also it can associate with different vendors' Wi-Fi 6E or legacy Access Points / Routers and PF Path is with single stream. Furthermore, AP12281_M2 included SDIO v3.0/2.0 interface for Wi-Fi, UART/PCM/I2S interface for Bluetooth and UART interface for IEEE 802.15.4/Thread. In addition, this compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for tablet, OTT box and portable & mobile devices.




Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
