SOM

System on Module - AP72619

Synaptics SL2619 + AP6612X(SYN4612)

"Empowering Multimodal Intelligence at the Edge with Industrial-Grade Resilience."

SOC	Synaptics SL2619
Sytern Memory	DDR4 2GB
Storage	eMMC 32GB
Wi-Fi Module	AP6612X(SYN4612)12x12mm Module Tri-band support across 2.4GHz, 5GHz, and 6GHz Wi-Fi 6E, Bluetooth 6.0 , and IEEE 802.15.4 (Thread/Zigbee) Pin-to-pin compatibility with AMPAK Wi-Fi 4 / Wi-Fi 5/ Wi-Fi 6E modules for design flexibility
Antenna	1x1 with I-PEX1 Connector
Dimensions	45x45 mm (OSM, Size-L Solderable Module)
Pin number	622Pin
Power Supply	5V/1A
Operating Temperature	-40°C~85°C(Industrial Grade)
Size	45mm x 45mm

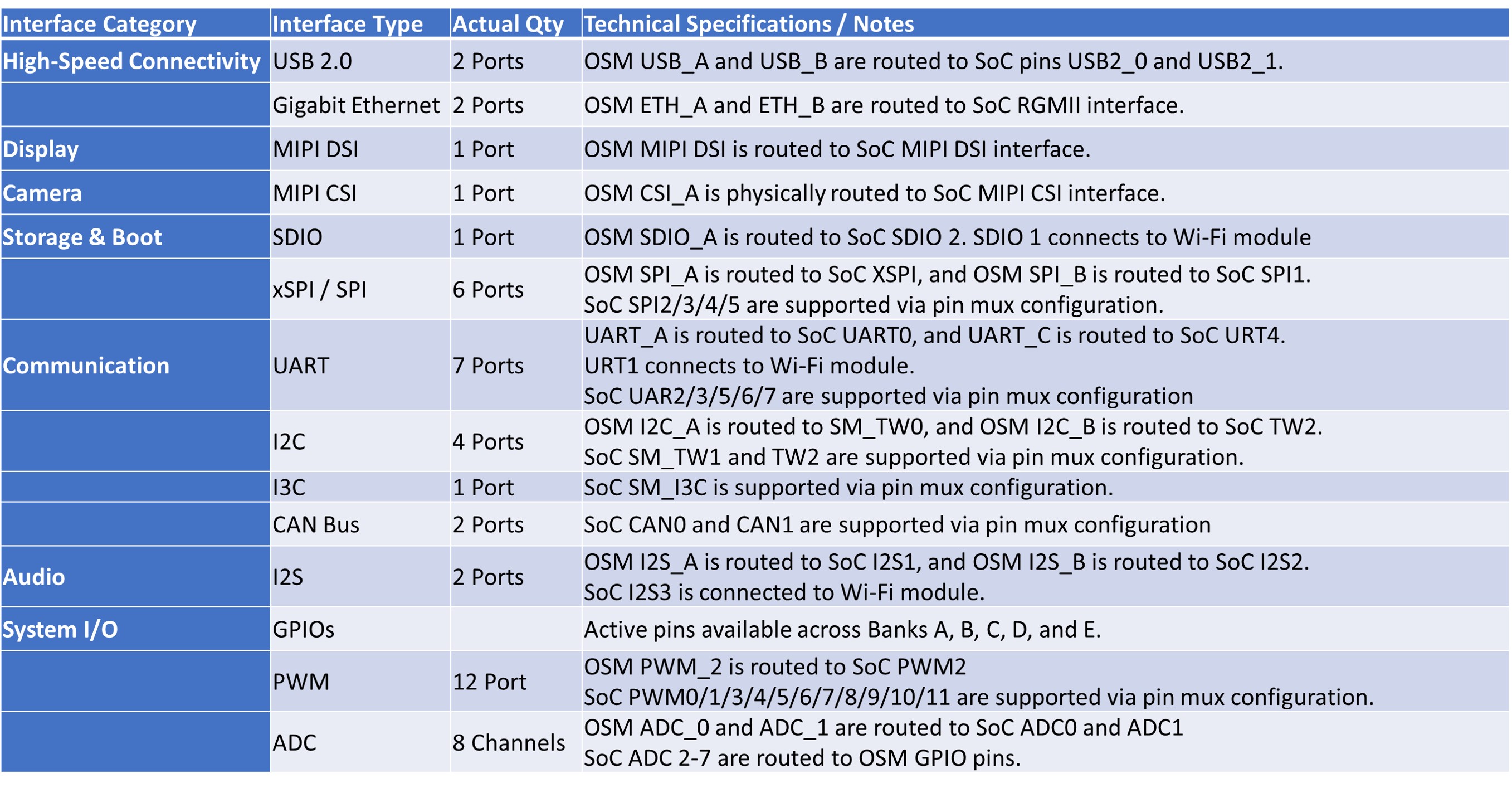

SoM Interface connect
Market segment	Industrial IoT & Smart Factory Data Transmission & Edge Gateways: High-speed data aggregation and protocol conversion. Industrial Automation: Machine vision for quality inspection (Defect Detection). AGV (Automated Guided Vehicles): Warehouse logistics robots following fixed paths. Industrial Railway On board system – Train Communication Network, Passenger Information system Trackside & Signaling: Robust connectivity for wayside monitoring, signaling control, and tunnel safety management.
