Stamp Type 2T2R

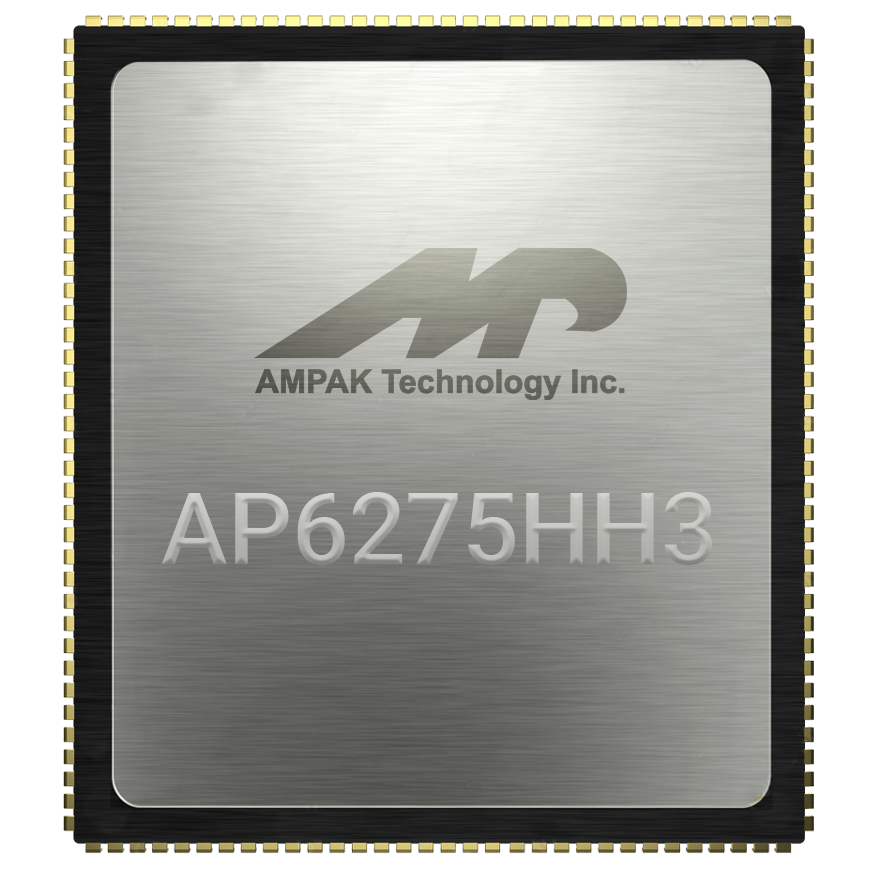

AP6275HH3
Dual Band Wi-Fi® 11a/b/g/n/ac/ax 2×2 MIMO Module
Specification
| Form factor | Stamp type |
| Dimension | 24x24mm |
| Band | 2.4GHz/5GHz |
| Certification | FCC/CE pre-scan |
| Wi-Fi spec | Support Wi-Fi® 6 Dual-stream spatial multiplexing up to 1200 Mbps data rate |
| Wi-Fi interface | PCIe |
| Operating temperature | -30 °C to 85 °C |
| Driver support | Linux, Android |
Product Overview
The AMPAK Technology® AP6275HH3 is a fully Wi-Fi functionality module with seamless roaming capabilities and advance security, also it could interact with different vendors’ 802.11a/b/g/n/ac/ax 2x2 Access Points with MIMO standard and Data rate of up to 1200 Mbps during single-band operation and 1430 Mbps in RSDB mode, with dual-stream in 802.11ax to connect the wireless LAN.
Furthermore AP6275HH3 included PCIe interface for Wi-Fi. In addition, this compact module is a total solution of Wi-Fi technologies. The module is specifically developed for tablet, OTT box and portable devices.
