Industrial Grade

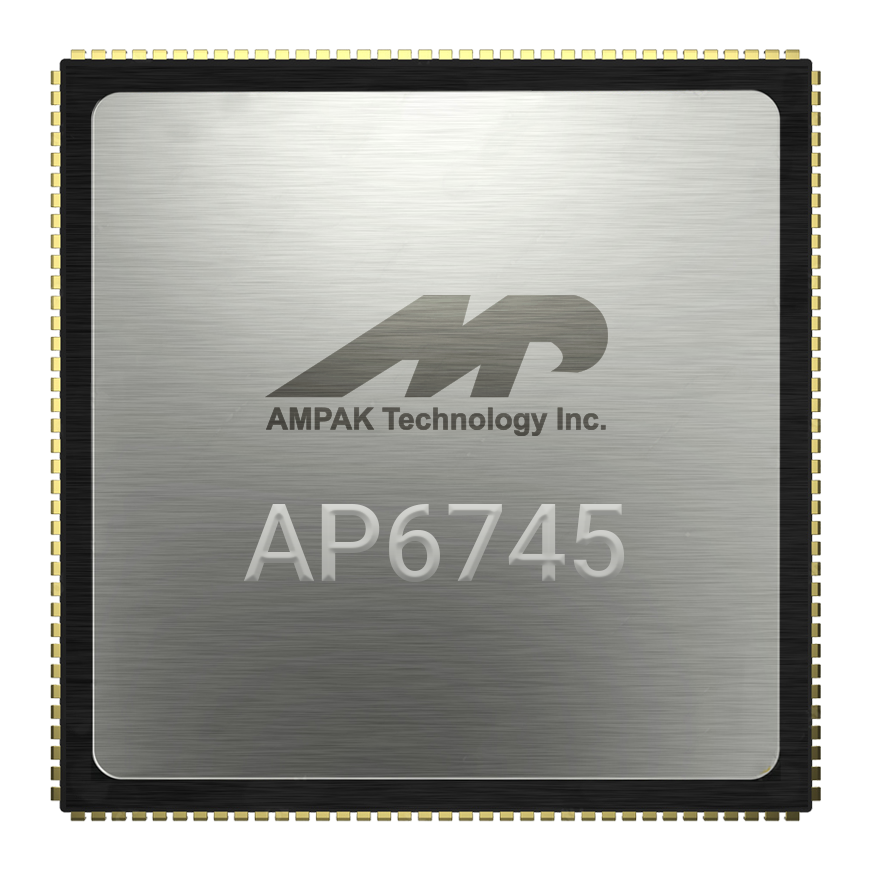

AP6745

1T1R 802.11 ac/a/b/g/n Wi Fi + Bluetooth 5.2 Module

Specification

Form factor	Stamp type
IC	Synaptics SYN43456
Dimension	12x12mm
Band	2.4GHz/ 5GHz
Certification	FCC/CE pre-scan and BQB
Wi-Fi spec	Support Wi-Fi® 5 Single-stream spatial multiplexing up to 433.3 Mbps data rate.
Wi-Fi interface	SDIO
Bluetooth spec	Bluetooth® 5.2
Bluetooth interface	UART / PCM
Operating temperature	-40 °C to 85 °C
Driver support	Linux, Android, RTOS
Datasheet
EVB

Product Overview

The AMPAK Technology® AP6745 is a fully Wi-Fi and Bluetooth functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors’ 802.11a/b/g/n/ac 1x1 Access Points with SISO standard and can accomplish up to speed of 433.3Mbps with single stream in 802.11ac to connect the wireless LAN. Furthermore, AP6745 included SDIO interface for Wi-Fi, UART/ PCM interface for Bluetooth. In addition, this compact module is a total solution for a combination of Wi-Fi + Bluetooth technologies. The module is specifically developed for tablet, OTT box and portable devices.
