M.2 2230 Card

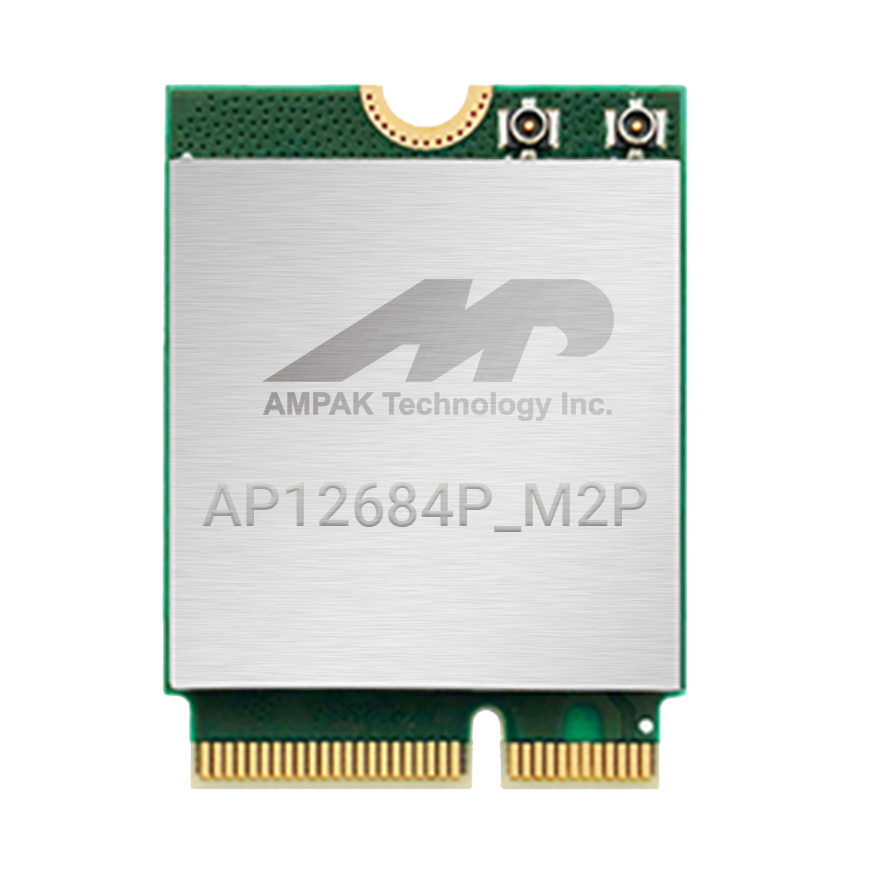

AP12684P_M2P

2T2R 802.11 a/b/g/n/ac/ax /be Wi-Fi 7® + Bluetooth® 6.0

Specification

Form factor Stamp type
IC Synaptics SYN4384
Dimension 22x30mm
Band 2.4GHz/5GHz/6GHz
Certification  FCC/CE pre-scan
Wi-Fi spec Support Wi-Fi®7
RSDB 1x1 +1x1
Dual-stream spatial multiplexing up to 1200 Mbps data rate
Wi-Fi interface PCIE
Bluetooth Spec Bluetooth® 6.0
Thread and 802.15.4 support
Bluetooth interface UART/PCM
Operating temperature -30 °C to 85 °C
Driver support Linux, Android, RTOS
Datasheet

Product Overview

The AMPAK Technology® AP12684P_M2P is a Wi-Fi®7(2.4/5/6 GHz)and Bluetooth functionalities 2230 M.2 card(KEY E)with seamless roaming capabilities and advance security, also it could interact with different vendors’ 802.11a/b/g/n/ac/ax 2x2 Access Points with MIMO standard and can accomplish up to speed of 1200 Mbp s with dual stream in 802.11ax to connect the wireless LAN. Furthermore AP12684P_M2P included PCIe interface for Wi-Fi, UART/ PCM interface for Bluetooth In addition, this compact module is a total solution for a combination of Wi-Fi + Bluetooth technologies. The module is specifically developed for tablet, OTT box and portable devices.


Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
