M.2 2230 Card

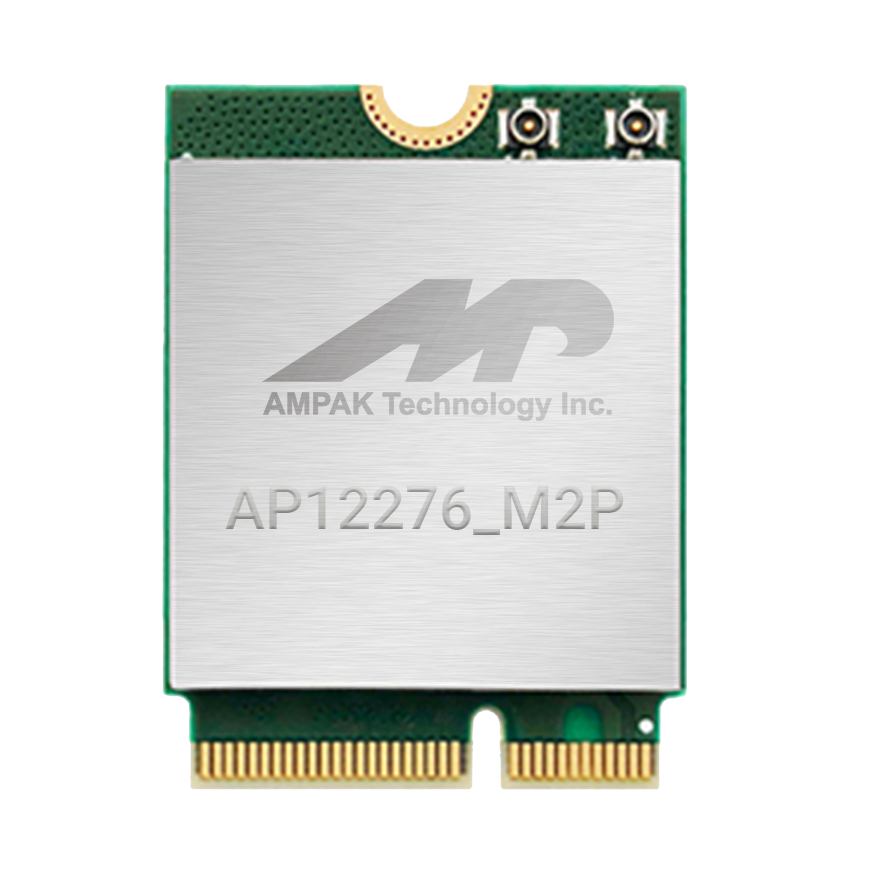

AP12276_M2P

2T2R 802.11a/b/g/n /ac/ax Wi Fi + BT 5.3 2230 M.2 card (KEY E)

Specification

Form factor M.2 2230
IC Synaptics SYN43756
Dimension 22x30mm
Band 2.4GHz/5GHz/6GHz(UNII-5/6)
Certification FCC/CE pre-scan and BQB
Wi-Fi spec Support Wi-Fi® 6E
Dual-stream spatial multiplexing up to 1200 Mbps data rate
Wi-Fi interface PCIe
Bluetooth spac Bluetooth® 5.3(include LE audio)
Bluetooth interface UART / PCM
Operating temperature -30 °C to 85 °C
Driver support Linux, Android
DataSheet
EVB

Product Overview

The AMPAK Technology® AP12276 _M2P is a fully Wi-Fi 6E(2.4/5/6 GHz) and Bluetooth functionalities 2230 M.2 card (KEY E) with seamless roaming capabilities and advance security, also it could interact with different vendors ’ 802.11a/b/g/n/ac /ax 2x2 Access Points with MIMO standard and can accomplish up to speed of 1200 Mbp s with dual stream in 802.11ax to connect the wireless LAN. Furthermore, AP12276 _M2P included PCIe interface for Wi-Fi, UART/ PCM interface for Bluetooth In addition, this compact module is a total solution for a combination of Wi-Fi + Bluetooth technologies. The module is specifically developed for tablet, OTT box and portable devices.



Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
