M.2 2230 Card

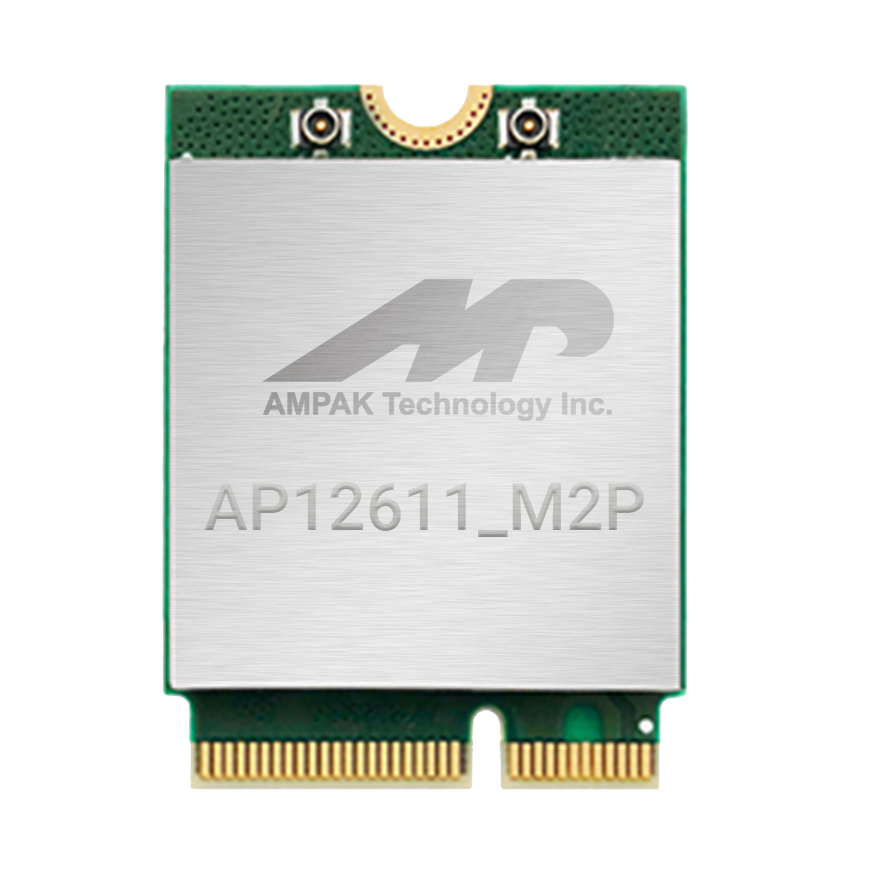

AP12611_M2P

1T1R 802.11 a/b/g/n/ac/ax Wi-Fi 6E + Bluetooth 5.4 2230 M.2 card (KEY E)

Specification

Form factor M.2 2230
IC Synaptics SYN43711
Dimension 30x22mm
Band 2.4GHz/5GHz/6GHz
Certification  BQB, FCC/CE pre-scan
Wi-Fi spec Support Wi-Fi® 6E
Single-stream spatial multiplexing up to 600 Mbps data rate.
Wi-Fi interface PCIe
Bluetooth spec Bluetooth® 5.4
Bluetooth interface UART/PCM
Operating temperature -40 °C to 80 °C
Driver support Linux, Android
Datasheet

Product Overview

The AMPAK Technology® AP12611_M2P is a fully Wi-Fi 6E(2.4/5/6GHz) and Bluetooth functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors' 802.11a/b/g/n/ac/ax Access Points. Furthermore AP12611_M2P included PCIe interface for Wi-Fi, UART/ PCM interface for Bluetooth. In addition, this compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for tablet, OTT box and portable devices.



Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
