LGA Type 1T1R

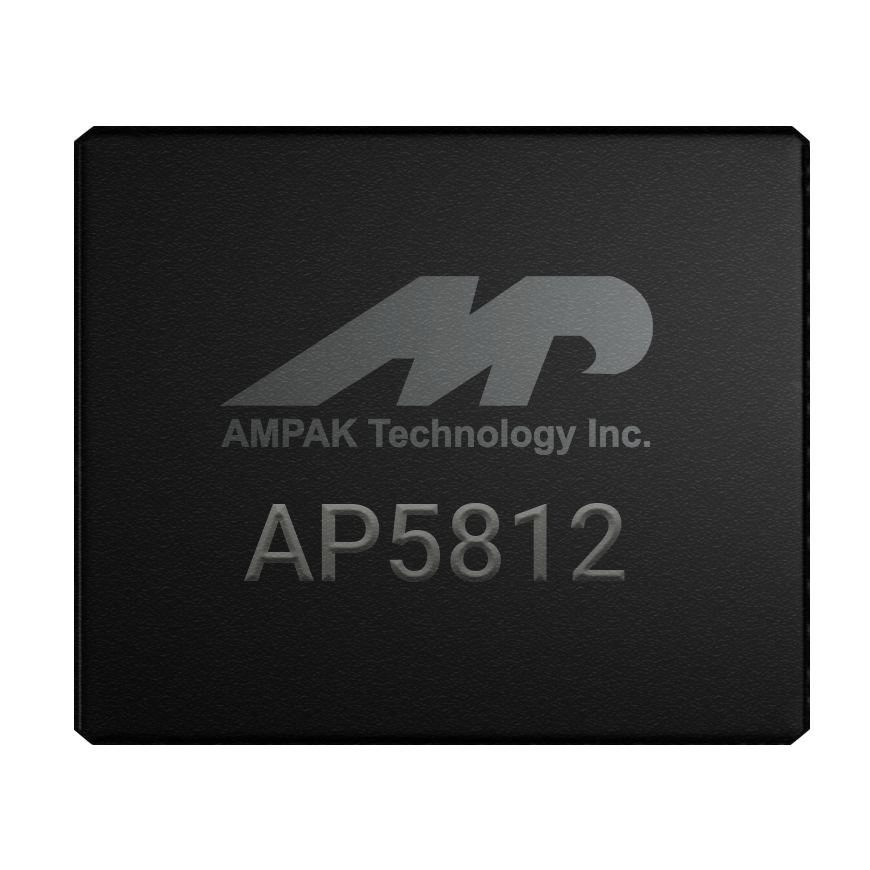

AP5812

1T1R 802.11 a/b/g/n/ac/ax Wi-Fi 6E + BT 6.0 + 802.15.4 Module

Specification

Form factor LGA
IC Synaptics  SYN4612
Dimension 5.8x6.9mm
Band 2.4GHz/5GHz/6Ghz
Certification FCC/CE pre-scan
Wi-Fi spec IEEE802.11ax, 1x1 20MHz Tri band support WiFi6E 2.4G, 5G and 6GHz
Single spatial stream with PHY rate up to 114.7 Mbps
Wi-Fi interface SDIO
Bluetooth spec Bluetooth® 6.0
Bluetooth interface UART/PCM
802.15.4(Matter over Thread) Support
Operating temperature -40 °C to 85 °C
Driver support Linux, Android, RTOS
Datasheet

Product Overview

The AMPAK Technology® AP5812 is a fully Wi-Fi 6E and Bluetooth functionalities module with seamless roaming capabilities and advance security. It is capable of associating with variety of Wi-Fi 6E or legacy Access Points / Routers, AP5812 supports SDIO v3.0 / 2.0 interfaces by proper setting for Wi-Fi and UART/ PCM interface for Bluetooth.
In addition, this compact module is a total solution for a combination of Wi-Fi + Bluetooth technologies. The module is specifically developed for tablet, OTT box and portable & mobile devices.


Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
