LGA Type 1T1R

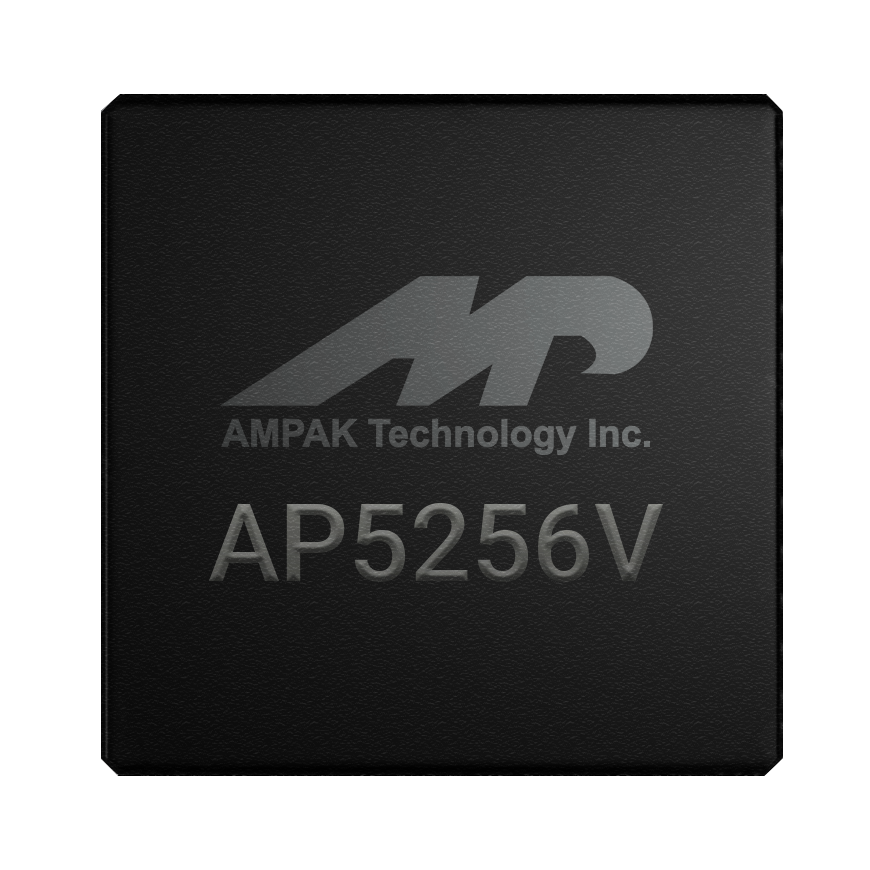

AP5256V
Dual Band Wi-Fi® 11a/b/g/n + Bluetooth® 5.2 Module
Specification
| Form factor | LGA |
| Dimension | 8x8mm |
| Band | 2.4GHz/5GHz |
| Certification | FCC/CE pre-scan |
| Wi-Fi spec | Support Wi-Fi® 4 Single-stream spatial multiplexing up to 72.2 Mbps data rate |
| Wi-Fi interface | SDIO |
| Bluetooth spec | Bluetooth® 5.2 |
| Bluetooth interface | UART |
| Operating temperature | -30 °C to 85 °C |
| Driver support | Linux, Android, RTOS |
Product Overview
The AMPAK Technology® AP5256V is a fully Wi-Fi and Bluetooth functionalities module. As highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11 a/ b/g/n Access Points in thewireless LAN.
The wireless module complies with IEEE 802.11 a/ b/g/n standard and it can achieve up to a speed of 72 Mbps with single stream in 802.11n to connect to the wireless LAN. The integrated module provides SDIO interface for Wi-Fi, UART / PCM interface for Bluetooth. This compact module is a total solution for a combination of Wi-Fi + bluetooth technologies. The module is specifically developed for Smart phones and Portable devices.
