LGA Type 1T1R

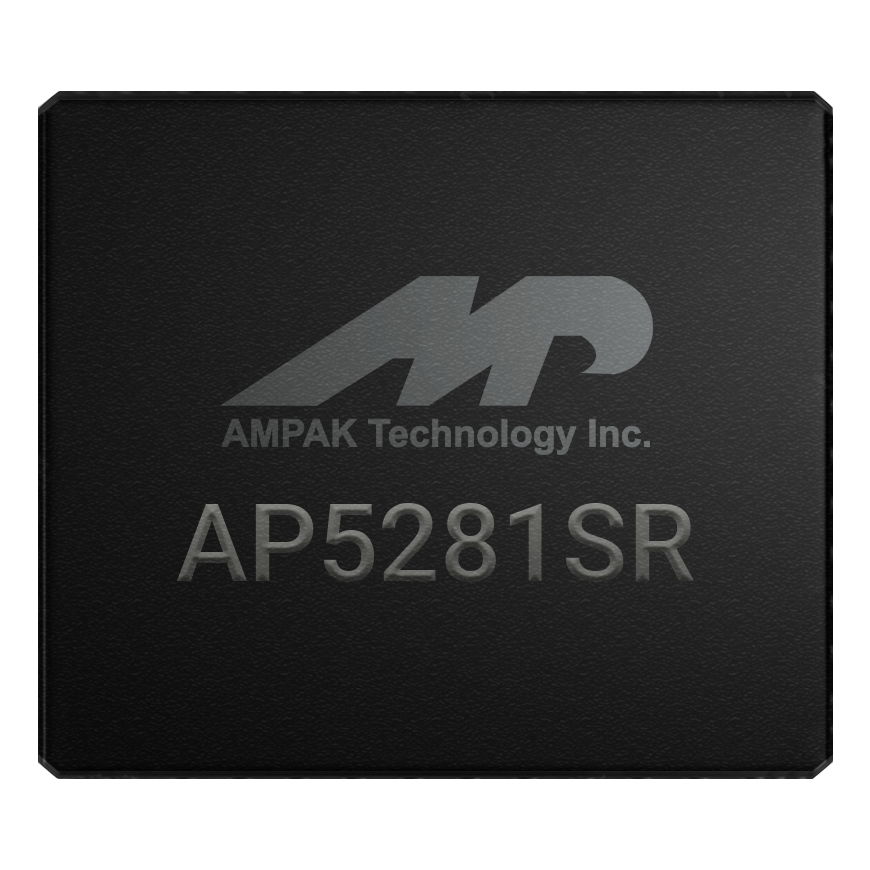

AP5281SR
1T1R 802.11 a/b/g/n /ac/ax Wi Fi 6E + BT 6.0 + IEEE 802.15.4/Thread Module
Specification
| Form factor | LGA |
| IC | Synaptics SYN4381 |
| Dimension | 7.9x6.3mm |
| Band | 2.4GHz/5GHz/6GHz |
| Certification | FCC/CE pre-scan and BQB |
| Wi-Fi spec | Support Wi-Fi® 6E Single-stream spatial multiplexing up to 600 Mbps data rate |
| Wi-Fi interface | SDIO |
| Bluetooth spec | Bluetooth® 6.0 |
| Bluetooth interface | UART |
| Operating temperature | -30 °C to 85 °C |
| Driver support | Linux, Android, RTOS |
| DataSheet |
Product Overview
The AMPAK Technology® AP5281SR is a fully Wi-Fi 6E and Bluetooth and IEEE 802.15.4/Thread functionalities module with seamless roaming capabilities and advance security, also it can associate with different vendors' Wi-Fi6E or legacy Access Points / Routers and run up to PHY rate of 600 Mbp s with single stream . Furthermore AP5281S R included SDIO v3.0 interfaces by proper setting for Wi-Fi, UART/PCM interface for Bluetooth, UART interface for IEEE 802.15.4/Thread. In Addition, this compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for tablet, OTT box and portable & mobile devices.
