Stamp Type 1T1R

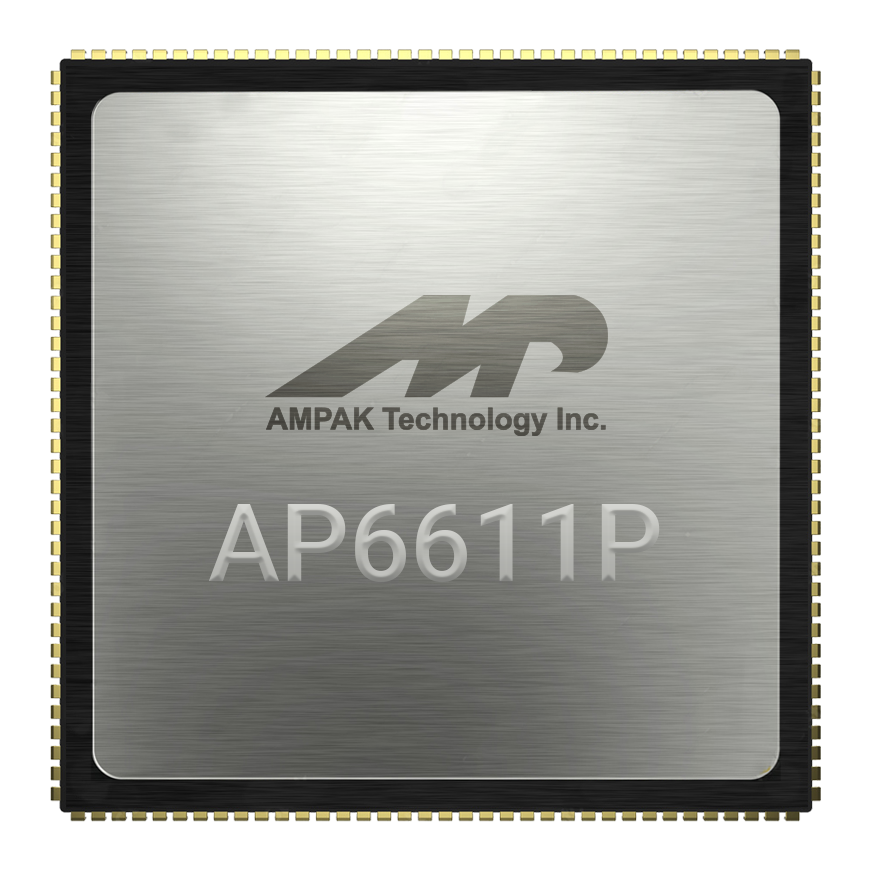

AP6611P

1T1R 802.11 a/b/g/n/ac/ax Wi-Fi 6E + BT 5.4 Module

Specification

Form factor Stamp type
IC Synaptics SYN43711
Dimension 12x12mm
Band 2.4GHz/5GHz/6GHz
Certification FCC/CE pre-scan,  SRRC, BQB
Wi-Fi spec Support Wi-Fi® 6E
Single-stream spatial multiplexing up to 600 Mbps data rate
Wi-Fi interface PCIe
Bluetooth spec Bluetooth® 5.4
Bluetooth interface UART/PCM
Operating temperature -40 °C to 85 °C
Driver support Linux, Android, RTOS
DataSheet

Product Overview

The AMPAK Technology® AP6611P is a fully Wi-Fi and Bluetooth functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors’ Wi-Fi 6E or legacy Access Points / Routers and run up to PHY rate of 600Mbps with single stream. Furthermore, AP6611P included PCIE interface for Wi-Fi, UART/ PCM interface for Bluetooth.
In addition, this compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for tablet, OTT box and portable devices.


Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
