Stamp Type 1T1R

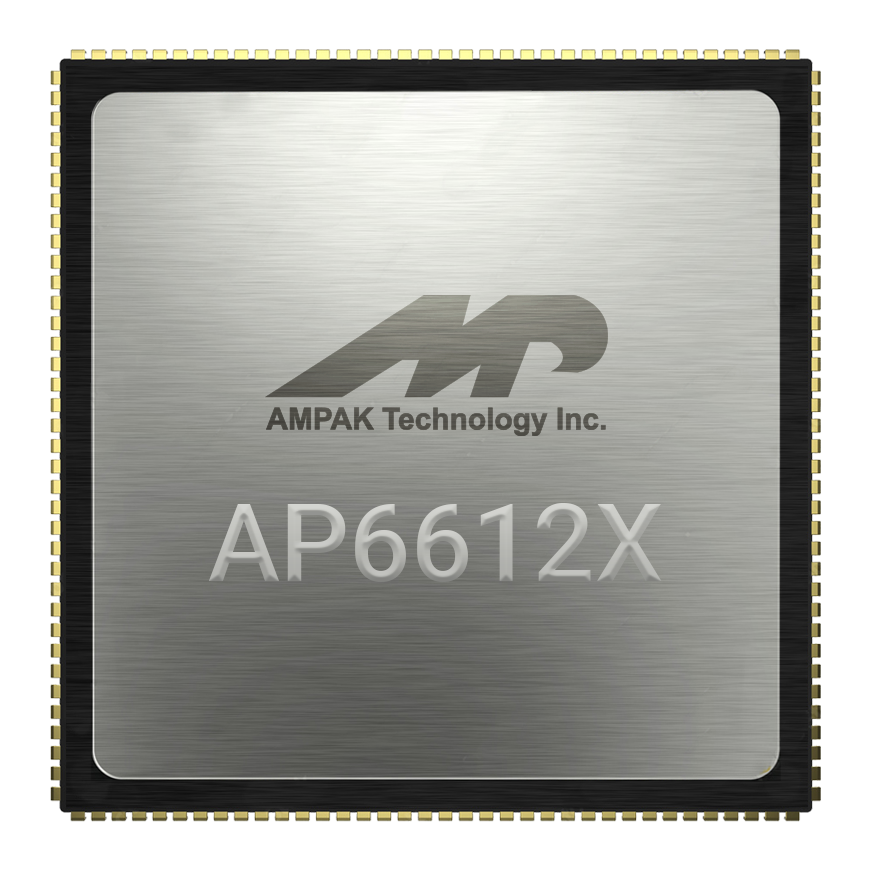

AP6612X

1T1R 802.11 a/b/g/n/ac/ax Wi-Fi®6E + Bluetooth® 5.4 + 802.15.4 Module

Specification

Form factor Stamp type
IC Synaptics SYN4612
Dimension 12x12mm
Band 2.4GHz/ 5GHz/ 6GHz
Certification FCC/CE pre-scan
Wi-Fi spec Support Wi-Fi® 6E
SDlO with 50 Mbps max throughput
Wi-Fi interface SDIO
Bluetooth Spec Bluetooth® 5.4
Thread and 802.15.4 support
Bluetooth interface UART
Operating temperature -30 °C to 85 °C
Driver support Linux, Android, RTOS
DataSheet

Product Overview

The AMPAK Technology® AP6612X is a fully Wi-Fi 6E and Bluetooth functionalities module with seamless roaming capabilities and advance security. It is capable of associating with variety of Wi-Fi 6E or legacy Access Points / Routers, AP6612X supports SDIO v3.0 / 2.0 interfaces by proper setting for Wi-Fi and UART/ PCM interface for Bluetooth. In addition, this compact module is a total solution for a combination of Wi-Fi + Bluetooth technologies. The module is specifically developed for tablet, OTT box and portable & mobile devices.


Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
