M.2 1216

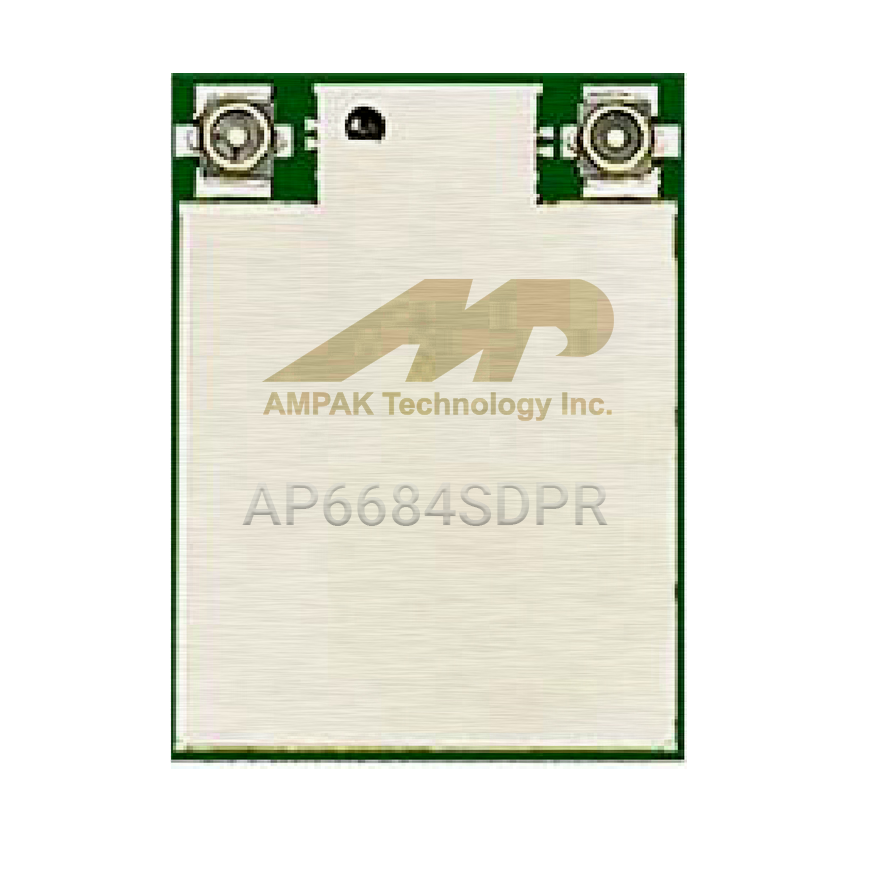

AP6684SDPR

2T2R 802.11a /b/g/n /ac/ax /be Wi-Fi 7 Bluetooth 6.2/802.15.4

Specification

Form factor Stamp type
IC Synaptics SYN4384
Dimension 12x16mm
Band 2.4GHz/5GHz/6GHz
Certification FCC/CE pre-scan
Wi-Fi spec IEEE Wi-Fi 7 compliant
Dual-stream spatial multiplexing up to 1200 Mbps data rate
Wi-Fi interface PCIe
Bluetooth spec Bluetooth® 6.2
802.15.4 support
Bluetooth interface UART/ PCM
802.15.4(Matter over thread) Support
Operating temperature -30 °C to 85 °C
Driver support Linux, Android
Datasheet

Product Overview

The AMPAK Technology® AP6684SDPR is a Wi-Fi 7 (2.4/5/6GHz) and Bluetooth functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors' 802.11a/b/g/n/ac/ax/be 2x2 Access Points with MIMO standard and can accomplish up to speed of 1200Mbps with dual stream in 802.11 be to connect the wireless LAN. Furthermore AP6684SDPR included PCIE interface for Wi-Fi, UART/ PCM interface for Bluetooth. In addition, this compact module is a total solution for a combination of Wi-Fi + Bluetooth technologies. The module is specifically developed for tablet, OTT box and portable devices.




Capacity
Speed
Connection
Battery Life

For more information about our products please contact AMPAK sales.
